EV Rotor Assembly

Core component of an EV drive motor generating torque
· Produces rotational torque through electromagnetic interaction with the stator
1.
2.

1. EV Rotor Ass’y

   Application:

   EV drive motor

   Function:

   Converts electric energy into mechanical energy for power transmission

EV Rotor Shaft

· Core component assembling rotor parts such as permanent magnets
1.
2.

1. EV Rotor Shaft

   Application:

   EV drive motor

   Function:

   Transfers rotational torque generated by the rotor to the drivetrain (reducer)

EV Reducer Shaft

Gear mechanism that adjusts and transfers motor torque to the wheels
1.
2.
3.

1. EV Reducer Shaft

   Application:

   EV reducer

   Function:

   Transfers and controls torque and speed from the motor to the wheels

Bipolar Plate (For FCEV Stack)

Core component of hydrogen fuel cell systems
· Separates and supplies hydrogen, oxygen, and coolant uniformly to each cell and discharges generated water
1.
2.
3.
4.

1. Bipolar Plate (For FCEV Stack)

   Application:

   Fuel cell vehicle

   Function:

   Combines hydrogen and oxygen to generate electricity and discharge water

HEV Rotor Assembly

Core motor rotor generating torque for hybrid drive systems
· Converts electric energy into mechanical energy for propulsion
1.
2.

1. HEV Rotor Ass’y

   Application:

   HEV drive motor

   Function:

   Converts electric to mechanical energy for power transfer

HEV Support Ring

Stator part that fixes and protects split cores
1.
2.

1. HEV Support Ring

   Application:

   HEV drive motor

   Function:

   Supports and protects stator coils

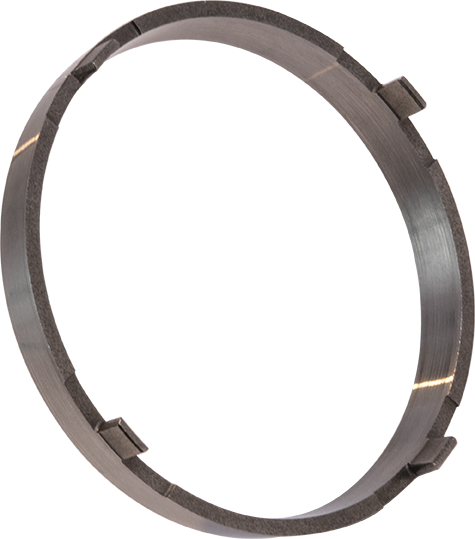

Stamped Steel Synchronizer Ring

Synchronizer ring made using progressive stamping process
· Reduces cost and weight, improves fuel efficiency in DCT applications
1.
2.
3.

1. Stamped Steel Synchronizer Ring

   Application:

   DCT transmission

   Function:

   Synchronizes two gears rotating at different speeds

Synchronizer Ring

Core transmission component for smooth gear shifting
· Synchronizes gear rotation speeds (applied to MT & DCT)
· Improves durability and shift quality
1.
2.
3.

1. Synchronizer ring

   Application:

   MT, DCT

   Function:

   Synchronization of rotating gears

Swash Plate

Mechanism that drives the vehicle A/C compressor
· Converts crankshaft rotation into linear motion to operate pistons
1.
2.
3.

1. Swash Plate

   Application:

   Automotive air-conditioning compressor

   Function:

   Power conversion mechanism

Gear / Shaft

Transfers power between multiple rotating shafts in a transmission · Adjusts gear ratio, rotational speed, and torque efficiency
1.
2.
3.

1. Gear-Annulus

   Application:

   8-speed automatic transmission

   Function:

   Transfers engine power

Transfers power between multiple rotating shafts in a transmission
· Adjusts gear ratio, rotational speed, and torque efficiency
1.
2.
3.

1. Gear-Speed

   Application:

   7-speed DCT (dry), 8-speed AT, CVT Automatic Transmission (8속) CVT

   Function:

   Transfers engine power
   · Input Shaft (For Auto Transmission)

· Input shaft transmitting crankshaft torque to the transmission gears.
1.
2.
3.

1. Input Shaft (For Auto Transmission)

   Application:

   8-speed DCT

   Function:

   Transfers engine power to transmission
